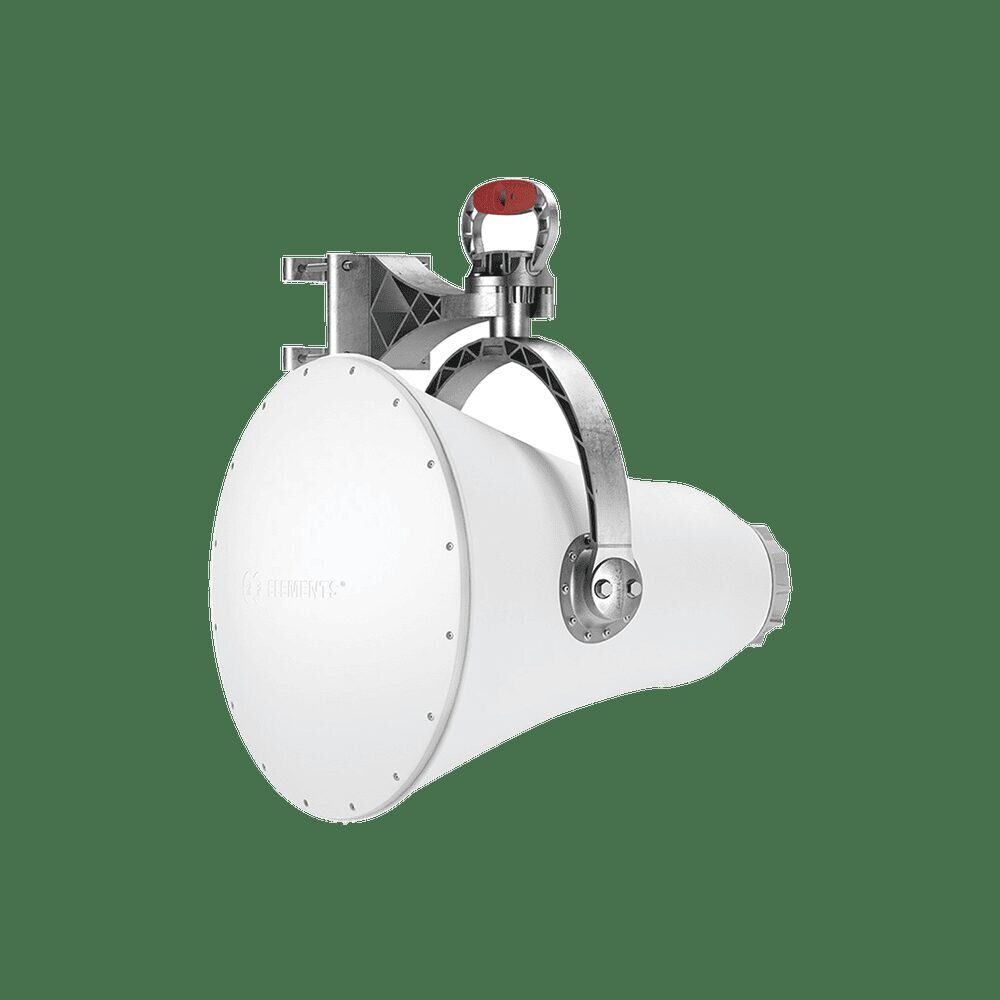

Ultra Horn, Point to Point, 5180-6775 GHz, Noise Rejecting, 24 dBi

Antenna Connection                      TwistPortTM - Quick Locking Waveguide Port
Antenna Type                                  Horn
Gain                                                  24 dBi
Enviromental                                   IP55
Pole Mounting Diameter                 0.59 - 3.38" (15-86 mm)
Temperature                                     -22°F to +131°F(-30°C to +55°C )
Wind Survival                                  100 mi/hour (60 km/hour)




Ultimate Noise Rejecting Point-to-Point Antenna

UltraHornTM TP antennas are highly directional scalar horn antennas for point-to-point connections. They offer all the benefits of scalar horns: ultra noise rejection, lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.

Unique Beam Without Side Lobes

UltraHornTM TP antennas are truly directional antennas: signal is focused only to a main beam without any side lobes. Precise radiation patterns of UltraHornTM TP antennas allow you to create long links in high noise environment with unprecedented performance. The optimal beamwidth makes aiming very simple compared to other point-to-point antennas.

Ultimate Noise Rejection

UltraHornTM TP antennas do not have side lobes which allows them to reject noise. Side radiation is directly related to noise: radios transmit and also receive interference from unwanted directions. Side lobes from most mainstream point-to-point antennas are huge, sometimes almost half the size of the main lobe and thus having a huge impact on overall performance. UltraHornTM TP antennas receive significantly less noise allowing
them to achieve amazing performance in noisy environments.

Zero Loss

UltraHornTM TP Antennas feature our industry changing TwistPortTM connector, a patent pending quicklocking waveguide port.
There are no coaxial RF connectors or RF cables anymore that makes TwistPortTM virtually lossless connector.
Connection of radio is brilliantly simple - “twist and lock” - all done with one hand!

High Gain

UltraHornTM TP antennas come with a surprisingly high gain: 21 dBi gain for UH-TP-5-21 and 24 dBi for UH-TP-5-24. In combination with narrow beamwidths and no side lobes, UltraHornTM TP antennas bring amazing performance even when compared to higher gain competitive products.

No Accessories Needed

UltraHornTM TP antennas come as a complete antenna solution for a point-to-point link. There is no need to spend more money for radomes or shrouds. No extra costs for additional shielding that burdens the tower and does not work properly. UltraHornTM TP antennas have everything. Just buy an appropriate TwistPortTMAdaptor to connect your radio and deploy. That’s it!

Innovative Mounting System

UltraHornTM TP antennas feature our newest innovative mounting system that makes antenna installation an easy task. The mount is completely separated from the antenna so first install just the bracket on the pole and then simply slide the antenna on the bracket. Thanks to this mounting system, adjustment is quick and easy as well. The optimal beam shape makes aiming very simple compared to mainstream parabolic dish point-to-point antennas.
