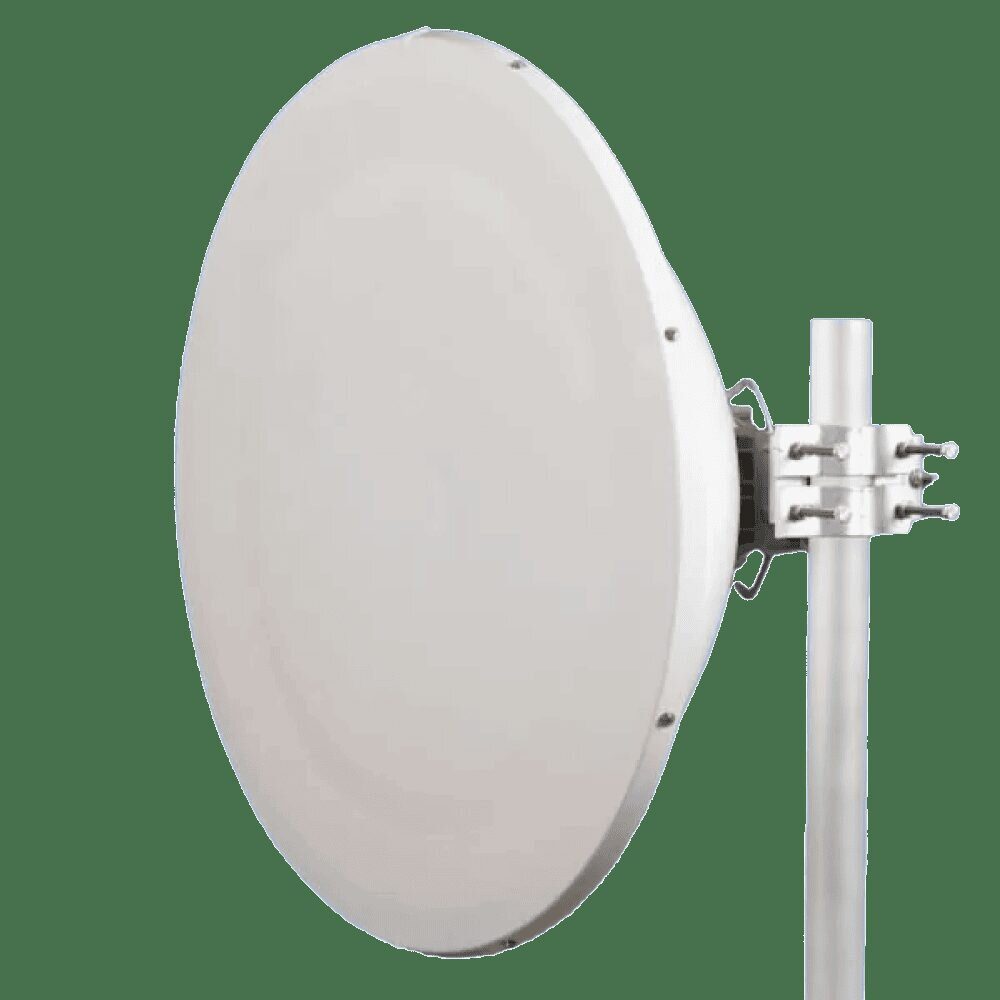

Dish Antenna for B11 Radio, Circular Connector, 10.1 ~ 11.7 GHz, 2.95 ft (0.9 m) Diameter

Características principales

• Specifications
• 10.1 - 11.7 GHz Microwave Antenna for Mimosa Networks B11 or Ubiquiti Networks AF11 Series Radios
• Technical Specifications:
• Frequency range: 10.1 to 11.7 GHz
• Front to Back ≥ 57 dB
• Gain at 10.1 GHz: 37 dBi
• Gain at 11.7 GHz: 37.5 dBi
• Beamwidth: -3 dB, 2.3°
• Polarization: Vertical/Horizontal
• Diameter: 0.9 m
• Weight: 11.9 kg (26.23 lbs)
• Special waveguide connector for Mimosa Networks B11 radio (No coaxial cables required)
• For mounting on Ubiquiti Networks AF11 radios, adapter model JX-AF11 is required
• PRODUCT AVAILABLE BY SPECIAL ORDER
• 1-year warranty
• High-End Backhaul Antennas for PTP Links
• Premium backhaul antennas made with ultra high-quality materials, designed to operate in the harshest conditions, noisy environments, or saline atmospheres. Extended frequency design from 4.9 to 6.1 and 11 GHz.
• Point-to-Point Links
• Point-to-point links of 24, 29, 32, 35 dBi for distances from 10 to 100 km, in 4.9 to 6.1 GHz frequency range
• Deep dish PTP antennas designed for high-capacity robust links, ideal to avoid interference in the environment. Perfect for long-distance internet, data, VoIP, or video surveillance links from 1 to 100 km
