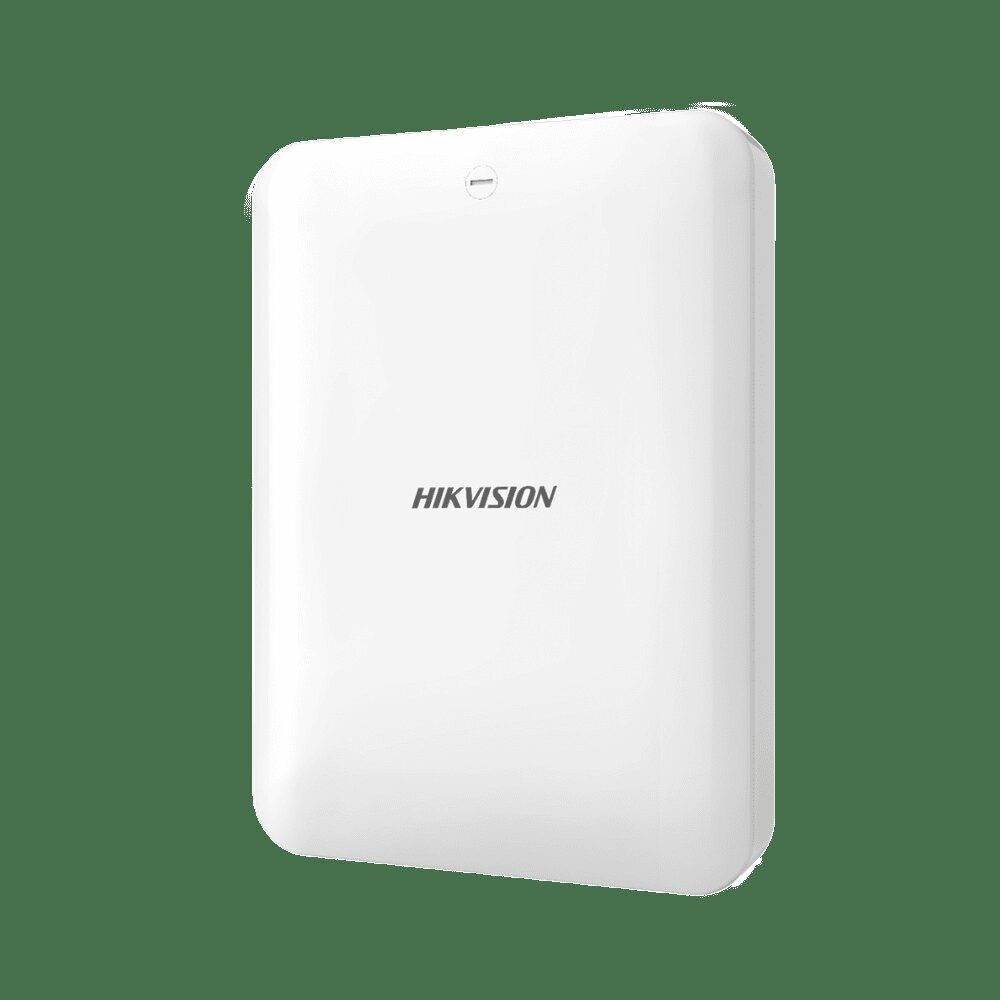

Hybrid Alarm Panel Version 2 IP / WiFi / (8 zones wired directly to the panel, 56 expandable zones either wireless or wired using modules)

Main features:

• 8 wired zones.

• Expandable up to 56 wireless or wired zones by adding expanders.

• Supports expanders with 8 wireless zones (DS-PM-RSWR-433).

• Supports 8 wired zone expanders (DS-PM-RSI8).

• Supports 1 wired siren, 2 wireless sirens.

• Supports up to 8 remote controls for arming and disarming.

• Notifications through the Hik-Connect, SMS, and local application.

• Up to 8 partitions.

• Supports relay modules (DS-PM-RSO4 or DS-PM-RSO4-H to review the capabilities of each module).

• IVAAS (Intruder Verification As A Service): Supports adding 4 cameras to the panel for a 7-second recording by actuating a sensor (2 Megapixel maximum).

• Supports up to 9 keyboards.

• The panel includes a backup battery (12 hours of operation).

Physical and Electrical Characteristics:

• Connection: 10M / 100M self-adaptive

• 110 VAC supply,

• Supports LAN, Wi-Fi (2.4 GHz), R-485, GPRS, 3G / 4G connection (does not include 3G / 4G communicator, recommended model DS-PMA-S2)

• Operating temperature: - 10 ° C to 55 ° C.

• Dimensions: 220 x 152 x 31.5 mm.

• Warranty: 2 years

Outstanding Features:

The security control panel supports Wi-Fi, LAN, GPRS, and 3G / 4G, as well as ISAPI, and SIA-Contact Identification Protocol, it is applicable to markets, shops, homes, factories, warehouses, offices, etc. scenarios.
