Residential/Commercial Hybrid Alarm Panel 4 to 8 Zones, Wireless Zone Support, Supplied with LEDs Keypad and a Digital Motion Detectors SWANQUAD

Alarm Panel CROW Ideal for Residential Applications

System
-Option of programming with the keyboard of icons and 8 zones
-Option of programming for the direct cable to the PC type Flash Drive (cable not included, requires software)
-Programmable via modem with the software upload and download
-Max. 8 keyboards
-Capacity to connect of CROW proximity and lectors
-Time of In and Out defined by the installer
-Armed and Disarmed self-function
-2 partitions
-A memory of 255 events, past events can be seen in the keyboard of icons
-Two Outputs PGM type open to 1.5 A each one, anyone can be siren output
-Supervision of telephone line, siren, and alternating current
-Power supply input of 14 Vac

Zones
-4 basic zones with the end of line resistance.
-Option to multiply the zones with resistance
-8 zones max
-Capacity to convert 1 or the 8 wireless zones (only add the receptor)
-Supports smoke detectors of 4 wires
-The zones can be set with/without the end of line resistance
-Admits various values of resistance to set-up easier
-Alerts the zone without activity the time that the panel is disarmed

Users
-100 codes for users
-Each User can have 11 levels of armed
-The users can have from 4 to 6 digits
-Duress code
-Up to 100 proximity cards related with armed, disarmed, and access control

Communication
-Max. 8 numbers for central monitoring and/or private
-Option to send events via phone
-Communication Protocols SIA, CONTAC / ID 4 + 2
-Option to communicate to a private number
-Module option for bidirectional voice
-Compatible with the third generation systems Generation 3i
-Compatible with the CS47LINK and CS47

Requires power transformer of voltage RT1440

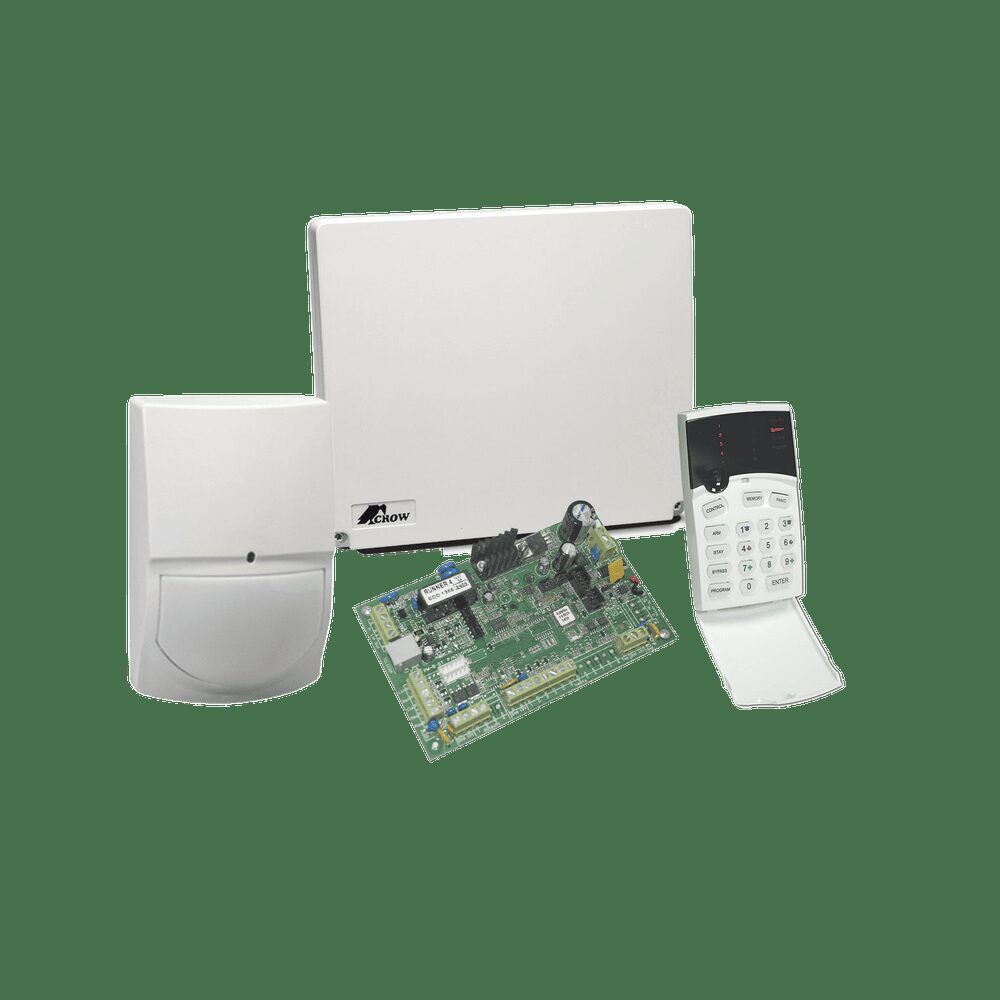

Includes:
-Plastic cabinet
-ICON Keyboard 8 K/B
-SWANQUAD Detector

*1 Year Warranty
