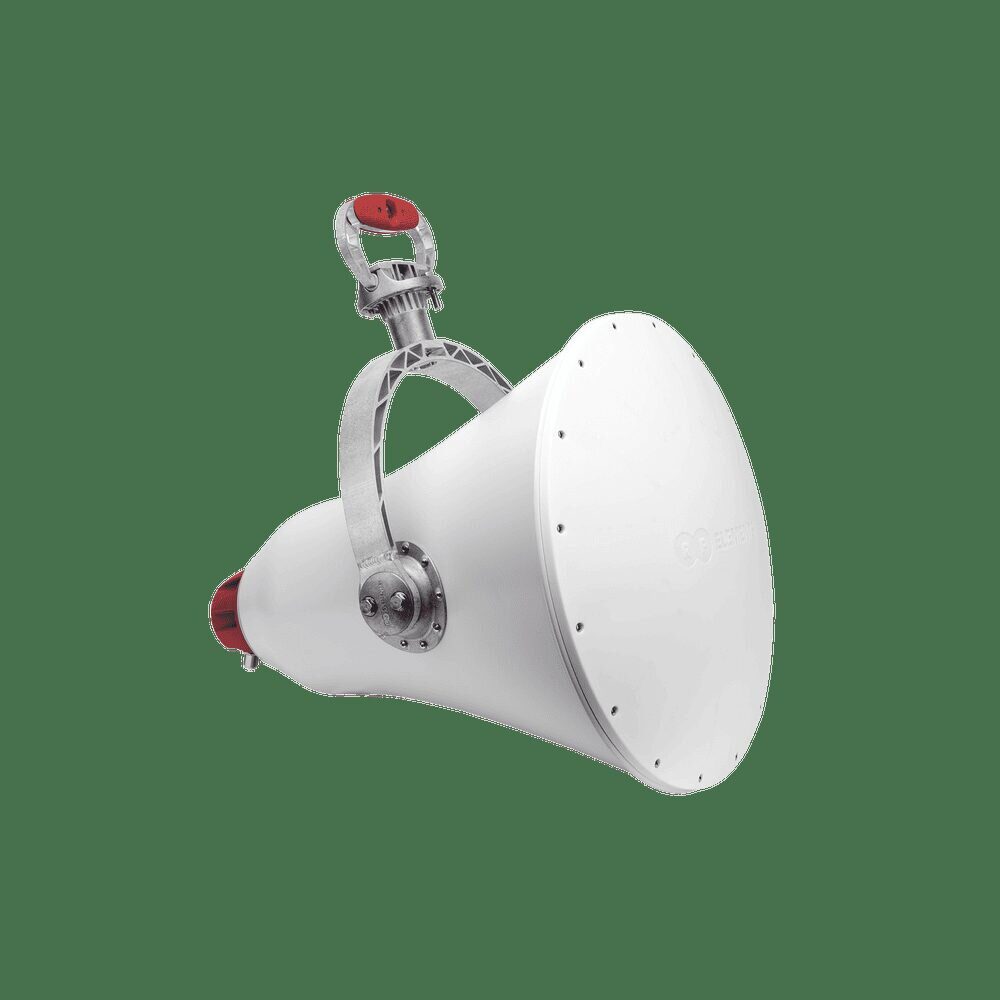

Directional Antenna UltraHorn™ Carrier Class, 5180-6775 GHz GHz, 24 dBi, Ultimate Noise Rejection, Highly Directive without Side Lobes - Image 1
Recursos del producto




Alternativas disponibles

Kit of 2 Antennas Extended Frequency, 4.8 - 6.5 GHz, 28 dBi, N-Male Connectors, Ideal for WISP Kit of 2 Antennas Extended Frequency, 4.8 - 6.5 GHz, 28 dBi, N-Male Connectors, Ideal for WISP $390.06 Stock: 9 Dish Antenna for B11 Radio, Circular Connector, 10.1 ~ 11.7 GHz, 2.95 ft (0.9 m) Diameter Dish Antenna for B11 Radio, Circular Connector, 10.1 ~ 11.7 GHz, 2.95 ft (0.9 m) Diameter $354.15 Stock: 4
Transceiver Mini-GBIC SFP 1000Base-LX for Single-Mode, Duplex LC/UPC, Wavelength1310nm
Kit of 2 Antennas Extended Frequency, 4.8 – 6.5 GHz, 28 dBi, N-Male Connectors, Ideal for WISP
·

Directional Antenna UltraHorn™ Carrier Class, 5180-6775 GHz GHz, 24 dBi, Ultimate Noise Rejection, Highly Directive without Side Lobes

Precio mayorista vigente
Ahorras $93.23 -23%
$312.11 MXN Lista $405.34 Factura fiscal disponible IVA incluido

Agotado
Nos visitas desde … Contáctanos para confirmar tiempos de entrega desde la red de bodegas.

SKU:UH-CC-5-24 Categorías:
Encriptación SSL protegida Pago seguro garantizado

Métodos de pago aceptados:

Visa
Mastercard
PayPal

Trabajamos con las siguientes paqueterías:

FedEx Express
Paquetexpress
Estafeta

Descripción

Ultimate Noise Rejection

UltraHornTM CC is a horn antenna with high gain and high directivity. UltraHornTM offers superb noise rejection due to a symmetrical beam with no side lobes. These unique features make UltraHornTM CC ideal for long-distance links in a high noise environment. UltraHornTM delivers an excellent performance as a narrow sector antenna for a high noise environment. High-performance antenna characteristics allow for precise network planning of dense co-location in very challenging RF conditions.



UH CC 5 24 web cover

Unique Beam Without Side Lobes

UltraHornTM CC is a highly directive antenna: radiated energy is focused only on the main beam due to the absence of side lobes. The precise radiation pattern of UltraHornTM CC allows you to deploy long-distance links in a high noise environment with unprecedented performance. When implementing a highly granular network coverage pattern, UltraHornTM delivers an excellent performance as a narrow sector antenna.

UH CC 5 24 rez

Ultimate Noise Rejection

UltraHornTM CC antenna lacks any side lobes which results in efficient noise rejection. Energy radiated in undesired directions is a direct source of noise: radios transmit and also receive a signal from unwanted directions and sources. Side lobes of most mainstream directional antennas are immense. Sometimes almost as big as half of the main lobe gain, having an enormous impact on the overall performance of a link.
UltraHornTM CC antenna receives and transmits significantly less noise achieving incredible performance in a noisy environment.







Radiation Patterns

Because the horn is a naturally directive antenna, it focuses the radiated fields into a single main beam without any side lobes. Commonly used antenna types, such as parabolic dish, always spills some of the energy over the aperture edge causing unwanted side lobes and interference issues.








N-type Connectors

UltraHornTM Carrier Class features N-type female connectors, enabling connection with a wide range of radios, such as MimosaTM, Cambium NetworksTM PMP450, LigoWaveTM, and many others

UH CC 5 24 N type

High Gain

UltraHornTM CC antenna delivers 24 dBi of gain with impressive frequency stability. UltraHornTM CC brings amazing performance based on the noise suppression resulting in higher SNR levels of the received signal even when compared to higher gain competitive products.

uh cc 5 24 ganancia

No Accessories Needed

UltraHornTM CC comes as a thorough antenna solution for a high-performance wireless link. There is no need to spend extra money on radomes or shrouds. Any additional shielding only burdens the tower and your budget. UltraHornTM CC has everything that is needed.

UH CC 5 24 sin acceso.

Innovative Mounting System

UltraHornTM CC antenna features an innovative mounting system that makes antenna installation easy. The mount is completely separated from the antenna. First, install the bracket on a pole, and then slide the antenna on the bracket. Thanks to this mounting system, the adjustment is quick and easy. Optimal beam shape makes alignment exceptionally simple.







Información adicional

SKU / Modelo UH-CC-5-24
Marca
Categoría
Envío Consulta peso para calcular envío
Proveedor EPCOMUSA
