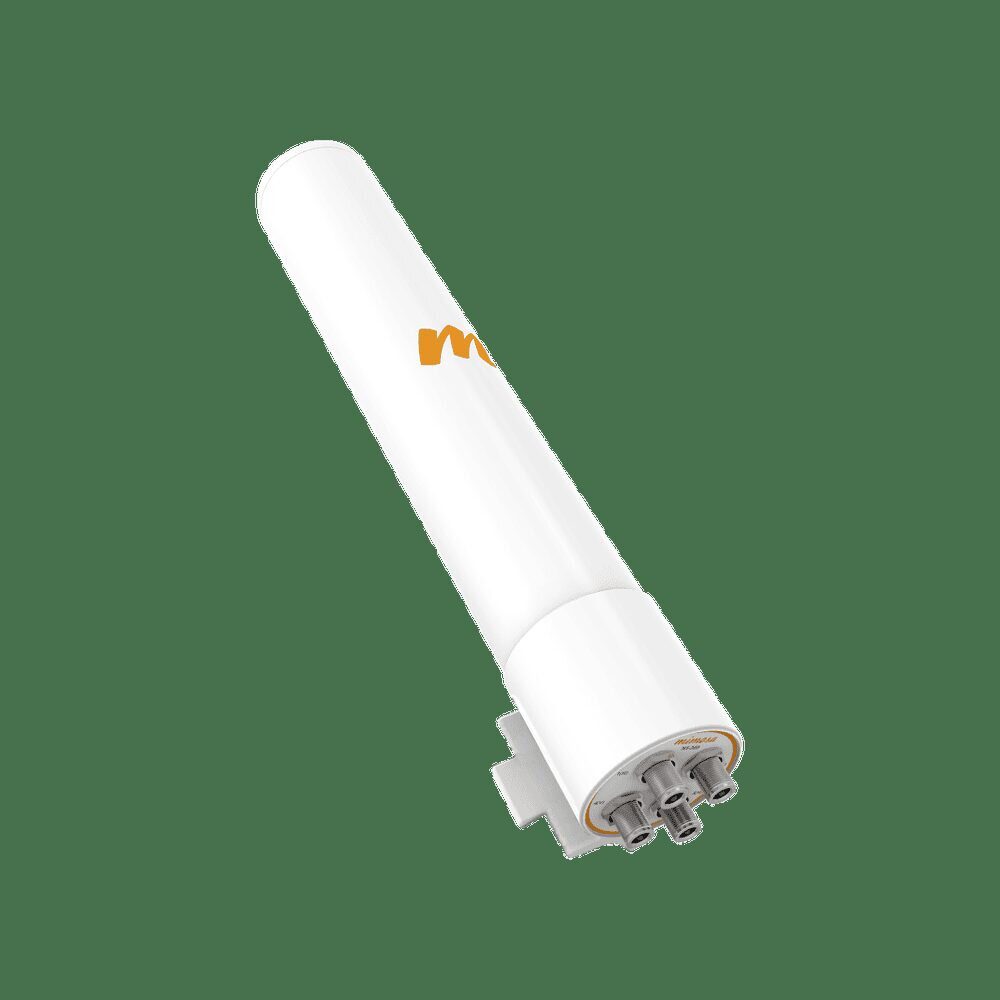

Smart Omni Antenna 4 Sectors, 4.9 – 6.4 GHz, Beamforming Technology Designed for A5c by Mimosa Networks

Introducing the industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.

N5-360 Smart Antenna 4 streams at 360 ° with Beamforming technology

• Frequency: 4.9 - 6.2 GHz.

• Gain: 15 dBi.

• Dual polarization in Vertical and Horizontal.

• Beamwidth in azimuth: 360 ° via four sectors 180 ° superimposed.

• Beamwidth in elevation: 8 ° via four sectors 180 ° overlapped.

• Tilt adjustment down 2 °.

• Gain ratio from front to back:> 30 dB.

• Cross polarization isolation:> 20 dB.

• Dimensions: Height 465 mm x width 80 mm.

• Weight: 1.11 kg.

• Connectors: 4 x N-Female.

• UV protection.

• Supports IP67.

• Temperature range: -40 to 55 ° C.

Designed for omnidirectional coverage with Mimosa Networks A5c multipoint base station radio
