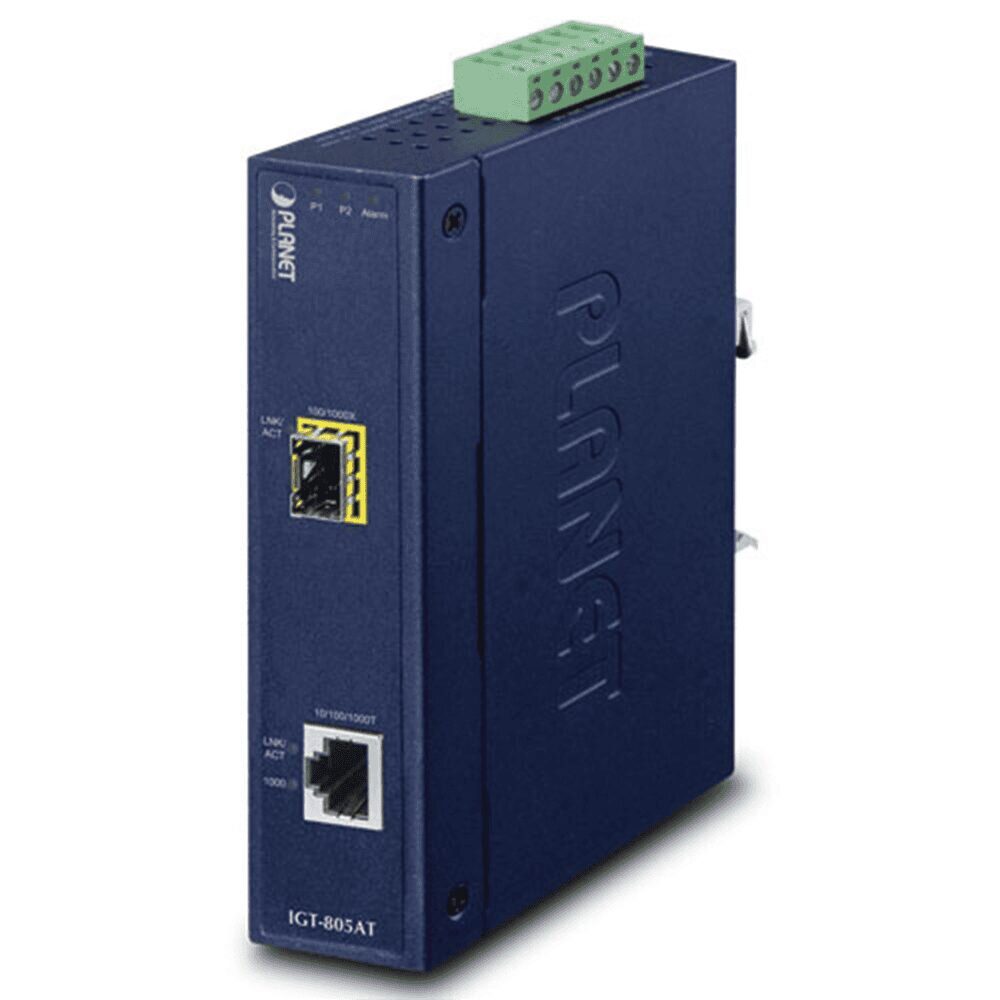

Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Características principales

• LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
• LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission.
• Flexible, Reliable and Industrial-grade Network Distance Extension Solution
• PLANET IGT-805AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X SFP fiber optic interface delivered in an IP30 rugged strong case with redundant power system. The IGT-805AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C. With 9K jumbo frame feature support, the IGT-805AT can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
• Fiber-Optic Link Capability Enables Extension of Network Deployment
• The mini-GBIC SFP slots built in the IGT-805AT support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
• Enhanced Smart Management Features
• The IGT-805AT provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR), both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.
• Therefore, the IGT-805AT greatly supports the administrators to manage the network efficiently.
• Environmentally Hardened Design
• The IGT-805AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-805AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-805AT can be placed in almost any difficult environment. The IGT-805AT also allows either DIN rail or wall mounting for efficient use of cabinet space.
• Convenient and Reliable Power System
• To enhance the operation reliability and flexibility, the IGT-805AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
• Hardened Environment Application
• PLANET IGT-805AT Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced. Moreover, the IGT-805AT is also compatible with 100Mbps and 1000Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.
