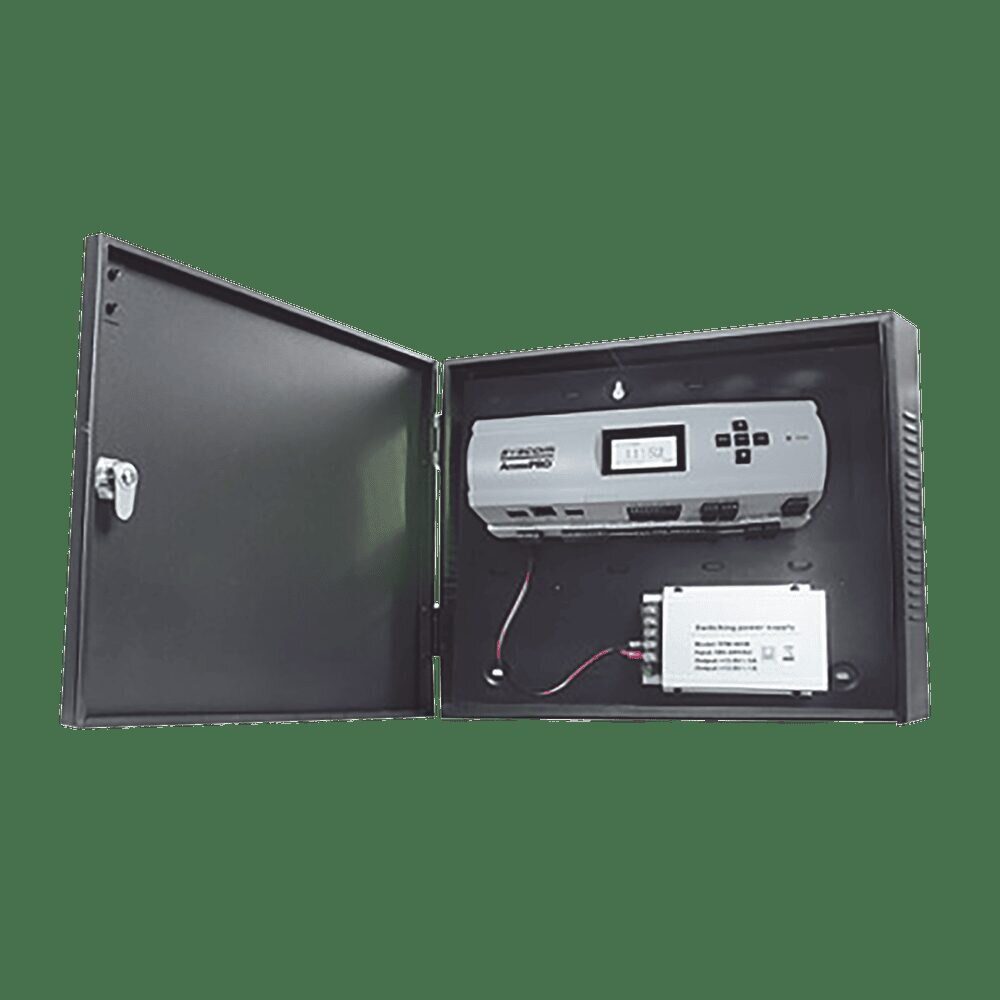

Access Controller up to 4 doors / Biometric readers supported / 3,000 Fingerprint templates / Metal Cabinet and 12VDC/5A Power Supply Included

Features:
- Access Control.
- Elevator Control.

Capacity:
- Fingerprints   3,000
- Cards   30,000
- Passwords   30,000
- Events   100,000
(Up to 32 GB Expandable Events Memory with SD Memory)

Communication:
- TCP/IP & RS485.
- Input: Multi-Format Wiegand.

Hardware:
- Metallic Cabinet with Key.
- Power Supply of 12VDC / 5A with Charger included.

Access Control Functions:
- Access Control by Schedules and Doors.
- Can combine methods of verification:
   • Prints + Card (With F12 reader)
   • Card + Password (With SYSKR602EKB reader)
- Multi-User Verification.
- Interlocking.
- Anti-Passback.
- Energized Relays.

Connections:
- 4 Relay Outputs NC/NO/COM for locks.
- 6 Auxiliary Relay Outputs NC/NO/COM.
- 4 Auxilliary Inputs.
- Exit Button & Magnetic Sensor per Door.

Power Supply:
- 12VDC / 220mA.
- Also includes: 12Vcc / 5A.
- Quote AC-CORD-1.8M (Not Included)

Compatible Readers:
- Biometric Readers:
   • Print Reader & Proximity F12 for Indoors / Outdoors.
   • Supports up to 8 F12 Readers (Input and Output Readers).
   • USB ZK4000 Reader for Fingerprint registry.

- Proximity:
   • SYSKR600E & SYSKR601E.
   • Supports 1 Reader per Door.

- Keyboard Proximity:
   • SYSKR602EKB.

- Long Range Reader:
   • PRO6RF & PRO12RF.

Compatibility:
- Video Integration:
   • DVRs Hikvision & EPCOM HD.
   • AccessPRO IP Cameras
   (Requires Integration License ZKVBIO1CH).

- Expansion:
   • EX16 Expander for Elevator Control.
   (Requires Integration License ZKELBIO1).

Important:
• Requires a camera license for every reader (each reader is associated with only one camera).
• Licenses are exclusive per system because they are integrated with the PC serial numbers and the DVR used (non-transferable).

Additional Information:
- Operating Temperature: 32 - 131°F(0 - 55 °C).
- Dimensions: 14.9" x 11.4" x 3.1" (380 x 290 x 80 mm).
- Includes Management Software in Spanish.

*1 Year Warranty
