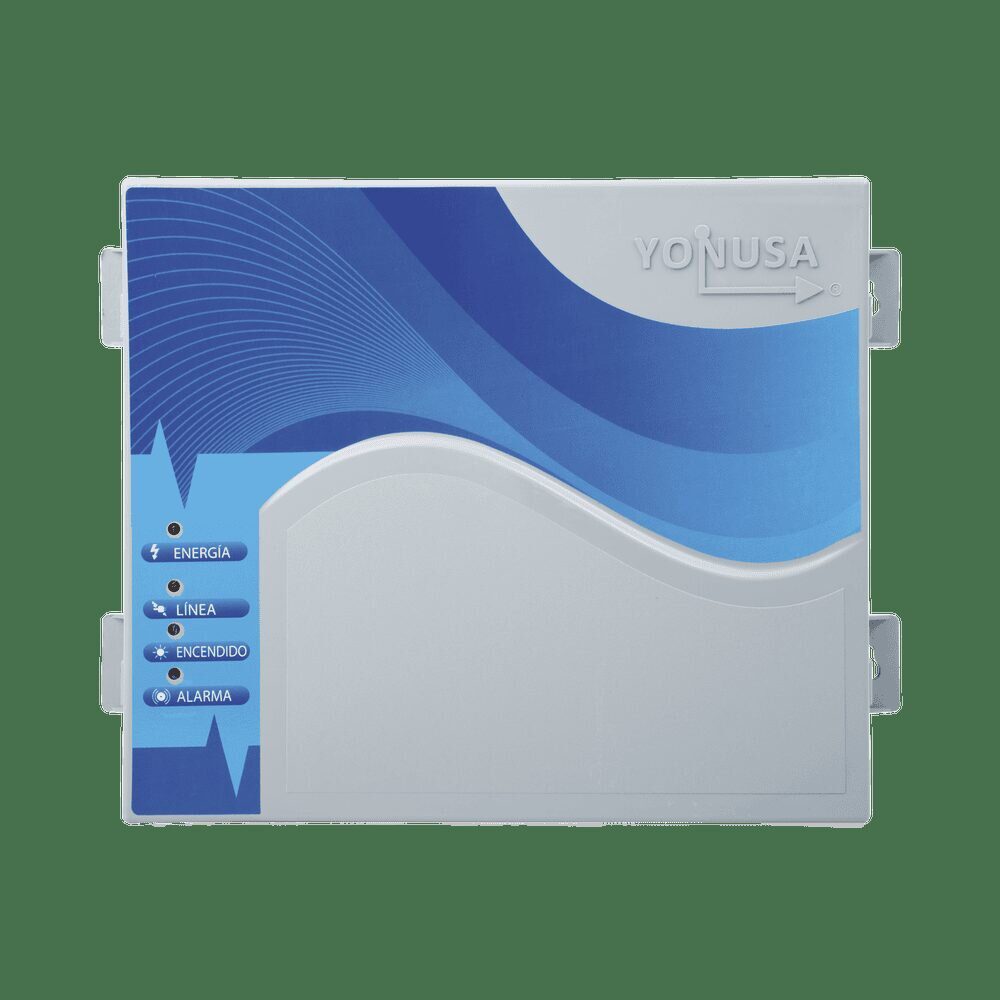

12,000 Volts Energizer – .9JOULES / 250 Mts of Protection for 5 Lines / Activated by Voltage Attenuation, Line Cut or Short to Earth / Integration to Alarm Panel

The best and most profitable perimeter protection system to protect houses, condos, businesses, buildings and cattle ranches. Deterrent system through High Voltage signs and repulsive generating a discharge of more than 12,000 Volts without damaging the intruder. SYSCOM® offers a new generation product reliable, efficient and easy to install.

Functionality
-Built-in charger and internal space for a battery of 4 A/h 12 Vdc, which will be a 3 day backup of continuous work.
-Option to supply power through a solar panel.
-Intrusion detection via:
*Voltage attenuation
*Line cut.
-Frontal luminous panel allows knowing easily the operation status of the equipment.
-Excellent stability for rain and plants (doesn't generate false alarms).
-Security key control; on, off and equipment block.
-Independent operation fences and alarms.
-Operation option even when the fence broken or damaged.
-Input port for remote control. Compatible with universal receive SECOLARM® Mod. SK-910R4 (Not included).
-Designed for heavy duty, which allows a continuous operation.
-Capacity operates sirens to 12 Vdc, 127 AC and 220 Volts AC.
-Option to integrate the alarm panel.
-Current control patented system which avoids damage to the intruder.

Features
-Power supply: 127 Vac.
-Auxiliar output (1.5 A, 12 V) for siren power supply.
-High voltage output autoprogrammable to the fence (doesn't require manual adjustment).
-Output power: .9 Joule.
- Siren warning in case of equipment failure and auto siren reset in case of momentary ground fall.
-Operating range 23 ºF (-5ºC) up to 122ºF (50ºC).
-Solid state electronics military grade.
-Backup battery charger up to 80 Ah.
-Output for automation dry contact.
-Maximum humidity factor: 72%.
-Maximum vibration factor: 12 Hz/cm.
-Immune to RF.
-Oscillation frequency: 1 Hz.
-Control circuit represents the intruder security without attenuating rejection force.

*Dimensions: 14.1" x 10.0" x 4.3" (36 x 25.5 x 11 cm).
*High impact polystyrene.
-Flame retardant (according to the B0 norm).
*Weight 7.5 lbs (3.4 kg). Approx.
*Protection against ultraviolet rays.
*Antioxidant protection.

Technical specifications:
-Consumption: 0.1 Amp, 1.6 w/h.
-Output tensions: 12,000 V +/-8%.
-Pulse force: 1 Joule +/-.5%
-Battery backup: 3 days, 30 days with external battery.
-Consumption: 2.0 W in standby, 2.6 W in alarm + siren consumption.
-Wire alarm range: 3,500 line meters.
-Approximate electric energy consumption: $0.20 USD monthly =1.2 kw/Month.

NOTE: we recommend using galvanized AWG size 16 wire.
