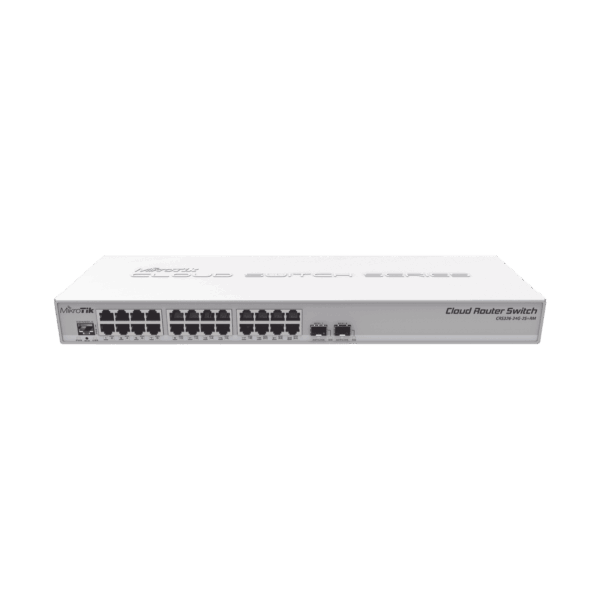

Switch Sistema Operativo Dual 24 Puertos Gigabit Ethernet y 2 Puertos SFP+ CRS326-24G-2S+RM 196782

Características principales

• All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
• Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
• Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
• Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
• SwOS/RouterOS operacion de los dos tipos de sistemas operativos de Mikrotik, Switch Gigabit Ethernet de 24 puertos con dos puertos SFP+, conectividad de velocidad de cable con varias características de conmutación nuevas. Tiene la función de "arranque dual" que le permite elegir qué sistema operativo prefiere usar, RouterOS o SwOS. Si prefiere tener un solo sistema operativo simplificado con más características específicas de interruptor, use SwOS. Si está acostumbrado a Winbox y le gustaría poder utilizar el enrutamiento y otras características de Capa 3 en algunos puertos de su CRS, inicie y use RouterOS. Puede seleccionar el sistema operativo deseado desde RouterOS, desde SwOS o desde la configuración del cargador RouterBOOT. Le brinda todas las funciones básicas para un conmutador administrado, y más: permite administrar el reenvío de puerto a puerto, aplicar filtro MAC, configurar VLAN, duplicar el tráfico, aplicar limitación de ancho de banda e incluso ajustar algunos campos de encabezado MAC e IP. La caja SFP admite módulos de 1.25 Gb SFP y 10 Gb SFP+.
• Specifications Details Product code CRS326-24G-2S+RM Architecture ARM 32bit CPU 98DX3236A1-BTD4C000 CPU core count 1 CPU nominal frequency 800 MHz Dimensions 440 x 144 x 44 mm License level 5 Operating System RouterOS / SwitchOS Size of RAM 512 MB Storage size 16 MB Storage type FLASH Tested ambient temperature -40°C .. +60°C Powering Details Max Power consumption 24W PoE in Passive PoE PoE in input Voltage 10-30 V Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 10-30 V Ethernet Details 10/100/1000 Ethernet ports 24 Fiber Details SFP+ ports 2 Peripherals Details Serial port RJ45 Switching results CRS326-24G-2S+RM Mode Configuration 64 byte 512 byte 1518 byte kpps Mbps kpps Mbps kpps Mbps Switching Non blocking Layer 2 throughput 65,476.2 33,523.8 10,338.3 42,345.9 3,576.1 43,427.8 Switching Non blocking Layer 2 capacity 65,476.2 67,047.6 10,338.3 84,691.7 3,576.1 86,855.7 Switching Non blocking Layer 1 throughput 65,476.2 44,000.0 10,338.3 44,000.0 3,576.1 44,000.0 Switching Non blocking Layer 1 capacity 65,476.2 88,000.0 10,338.3 88,000.0 3,576.1 88,000.0 Ethernet test results CRS326-24G-2S+RM 98DX3236A1 all port test Mode Configuration 1518 byte 512 byte 64 byte kpps Mbps kpps Mbps kpps Mbps Bridging none (fast path) 81.3 987.3 235 962.6 296 151.6 Bridging 25 bridge filter rules 81.3 987.3 90.7 371.5 90.9 46.5 Routing none (fast path) 81.3 987.3 235 962.6 261.9 134.1 Routing 25 simple queues 81.3 987.3 112.6 461.2 111.5 57.1 Routing 25 ip filter rules 59.8 726.2 61.4 251.5 59.5 30.5 All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544) Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
